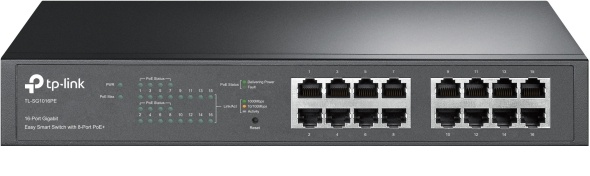

TP-Link 16-Port Gigabit Easy Smart Switch TL-SG1016PE 8 POE

What This Product Does

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W, up to 30 W per port, this powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, this network switch saves the power consumption, making it an eco-friendly solution for your business network.

Port Priority Function

Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.

Durable Metal Casing with Fanless Design

The TL-SG1016PE features a robust metal casing that enhances heat dissipation and ensures extended product longevity. Its fanless design reduces power consumption and enables it to work silently, making it the perfect choice for noise-sensitive environments.
